SDB has a new powder measure collar assembly

#1 · May 24, 2024, 10:29 pm

I was getting some warranty parts for my powder measure and Dillon sent along a new SDB collar assembly--the part that attaches the PM to the top of the powder measure die.

The SDB is (was) the only Dillon machine that had a different method to hold the powder measure on. Seems like they now have one that appears to attach like all the other machines do.

There are two screws holding a collar whereas the old method was one screw that held in an "L" bracket.

Since I was in the middle of solving some problems, righting some wrongs, fighting for Truth, Justice, and the American Way I haven't had a chance to install it yet.

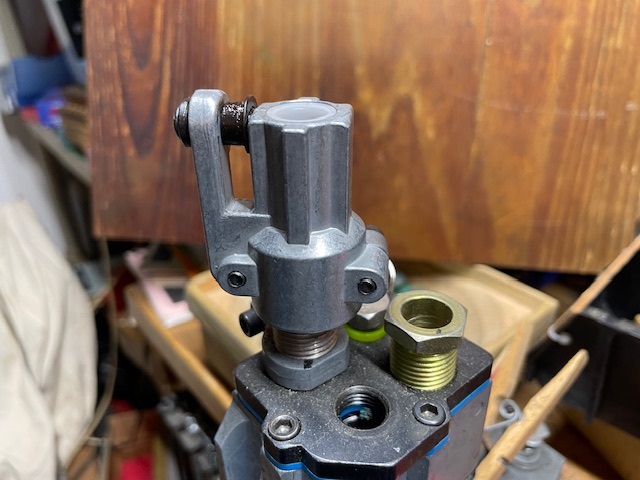

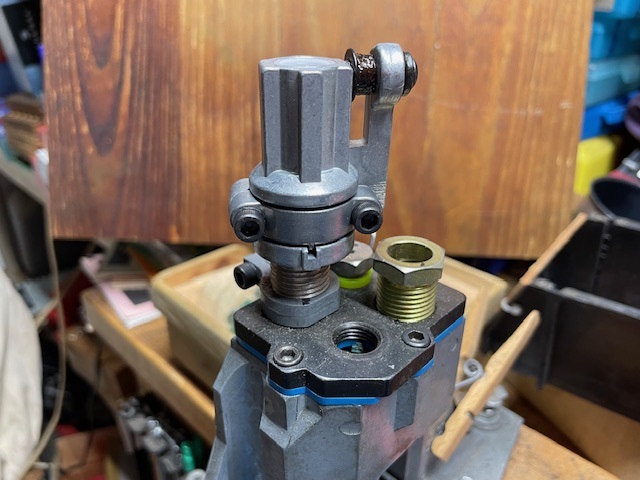

pictures attached

walt

Uploaded files:

#2 · May 28, 2024, 4:15 pm

Unfortunately, that connector body collar you were sent is not compatible with the SDB machine. If you are converting your SDB measure for use on the RL550/650/750, then this part is all you need.

#3 · June 7, 2024, 8:35 pm

thank makes much more sense. and here I got all excited

thanks for clearing this up

wally
